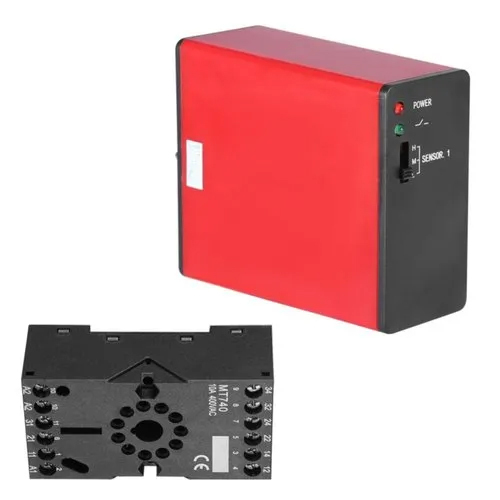

Loop Detecter

Product Description

1. Inductive Loop Installation: Inductive loops are installed in the road surface, typically in the form of rectangular or circular loops. These are connected to a control system at the toll gate.

2. Vehicle Detection: When a vehicle passes over or stops above the loop, the metal in the vehicle alters the electromagnetic field around the loop, signaling the control system that a vehicle is present.

3. Data Processing: The control system processes the signal from the loop sensor and triggers the tolling system to either charge the vehicle or capture relevant data for vehicle classification (e.g., car, truck).

4. Automated Toll Collection: The loop detection system may be integrated with automated toll collection systems, such as Electronic Toll Collection (ETC), to charge vehicles without the need for manual interaction.

Benefits of Loop Detection for Toll Gates:

• Efficiency: Speeds up toll collection by reducing manual intervention, creating a seamless experience for drivers.
• Accuracy: Ensures accurate vehicle counting and toll charges based on vehicle classification.
• Traffic Flow: Helps in managing traffic flow at toll booths by reducing bottlenecks and minimizing delays.
• Automation: Enhances the level of automation, reducing the need for human oversight and minimizing errors.
• Cost-effective: Once installed, loop detection systems can reduce operational costs by automating toll collection and improving throughput.

Applications of Loop Detection in Tolling:

• Highways: Used for automated toll collection on highways and expressways.
• Bridges & Tunnels: Essential for efficient tolling on bridges and tunnels where rapid collection is required.
• Urban Tolling Zones: Helps with vehicle monitoring and payment in cities that implement congestion pricing or tolling.

Key Components:

• Inductive Loop Sensors: The core technology embedded in the road surface.
• Control Unit: Processes signals from the sensors.
• Toll System Interface: Integrates with the toll collection infrastructure to collect payments or issue tickets.
